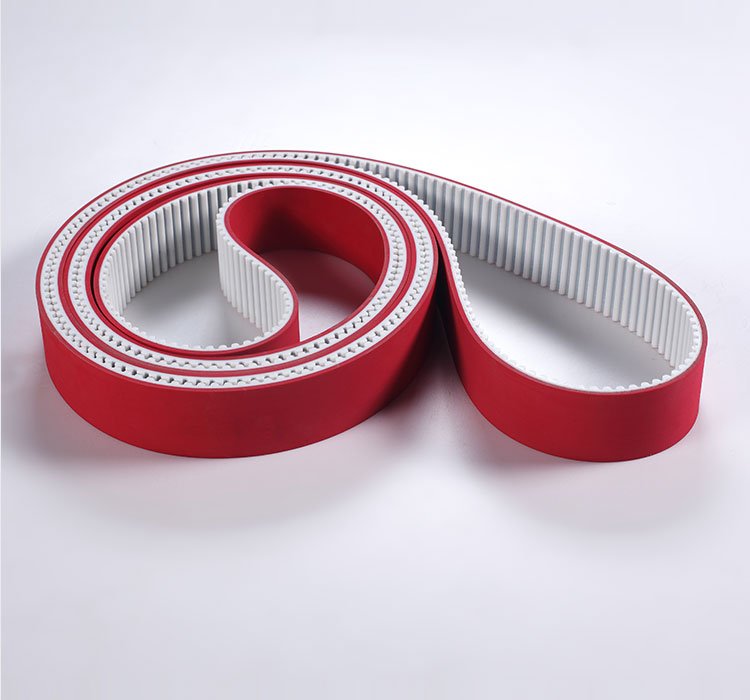

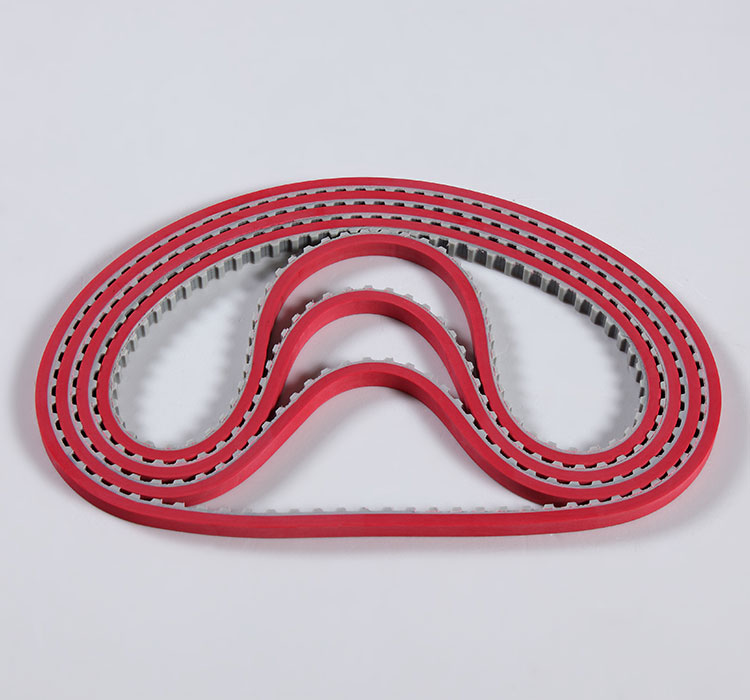

产品详情
同步带技术参数
|
型号 |
极限拉伸强度 |
最大许用拉力 |
最大许用拉力 |
成品带宽度及公差 |
|
XL |
3000N/25.4mm |
750N/25.4mm |
375N/25.4mm |
101.6+0.4mm |
|
L |
6300N/25.4mm |
1575N/25.4mm |
785N/25.4mm |
101.6+0.4mm |
|
H |
6300N/25.4mm |
1575N/25.4mm |
785N/25.4mm |
101.6+0.4mm |
|
XH |
10500N/25.4mm |
2625N/25.4mm |
1312N/25.4mm |
100+0.4mm |
|
T5 |
3000N/25.4mm |
750N/25.4mm |
375N/25.4mm |
100+0.4mm |
|
AT5 |
5600N/25.4mm |
1400N/25.4mm |
700N/25.4mm |
100+0.4mm |
|
T10 |
6300N/25.4mm |
1575N/25.4mm |
785N/25.4mm |
100+0.4mm |
|
AT10 |
10500N/25.4mm |
2625N/25.4mm |
1312N/25.4mm |
100+0.4mm |
|
T20 |
10500N/25.4mm |
2625N/25.4mm |
1312N/25.4mm |
100+0.4mm |
|
AT20 |
14000N/25.4mm |
3500N/25.4mm |
1750N/25.4mm |
100+0.4mm |
|
5M |
5600N/25.4mm |
1400N/25.4mm |
700N/25.4mm |
100+0.4mm |
|
8M |
10500N/25.4mm |
2625N/25.4mm |
1312N/25.4mm |
100+0.4mm |
|
14M |
14000N/25.4mm |
3500N/25.4mm |
1750N/25.4mm |
100+0.4mm |
1、梯形齿同步带
| 型号 | 节距（mm) | 齿高（mm) | 带厚（mm) | 角度β° |
| MXL | 2.032 | 0.51 | 1.14 | 40 |
| XL | 5.08 | 1.27 | 2.30 | 50 |
| L | 9.525 | 1.91 | 3.60 | 40 |
| H | 12.7 | 2.29 | 4.30 | 40 |
| XH | 22.225 | 6.35 | 11.20 | 40 |
| XXH | 31.75 | 9.53 | 15.70 | 40 |
| T2.5 | 2.5 | 0.70 | 1.30 | 40 |
| T5 | 5 | 1.20 | 2.20 | 40 |
| T10 | 10 | 2.50 | 4.50 | 40 |
| T20 | 20 | 5.00 | 8.00 | 40 |
| AT5 | 5 | 1.20 | 2.70 | 50 |
| AT10 | 10 | 2.50 | 5.00 | 50 |
| AT120 | 20 | 5.00 | 8.00 | 50 |
2、圆弧齿同步带（HTD系列）
| 型号 | 节距（mm) | 齿高（mm) | 带厚（mm) |
| 2M | 2 | 0.75 | 1.36 |
| 3M | 3 | 1.17 | 2.40 |
| 5M | 5 | 2.06 | 3.80 |
| 8M | 8 | 3.36 | 6.00 |
| 14M | 14 | 6.02 | 10.00 |
| 20M | 20 | 8.40 | 13.20 |
3、 高扭矩同步带（STD系列）
| 型号 | 节距（mm) | 齿高（mm) | 带厚（mm) |
| 2M | 2 | 0.76 | 1.36 |
| 3M | 3 | 1.14 | 1.90 |
| 4.5M | 4.5 | 1.71 | 2.81 |
| 5M | 5 | 1.91 | 3.40 |
| 8M | 8 | 3.05 | 5.30 |
| 14M | 14 | 5.30 | 10.20 |
4、 兔子牙同步带（RPP系列）
| 型号 | 节距（mm) | 齿高（mm) | 带厚（mm) |
| P2M | 2 | 0.76 | 1.36 |
| P3M | 3 | 1.15 | 1.90 |
| P5M | 5 | 1.95 | 3.50 |
| P8M | 8 | 3.20 | 5.50 |
| P14M | 14 | 6.00 | 10.00 |
| 8YU | 8 | 3.02 | 5.20 |
